For decades, closed-circuit water cooling towers were built by Caravela - Thermotank, and others, with systems of steel tubes, copper, etc., installed inside the tower, in an attempt to eliminate the external heat exchanger, tube-like belongings, etc. Many know this type of device as an evaporative condenser.

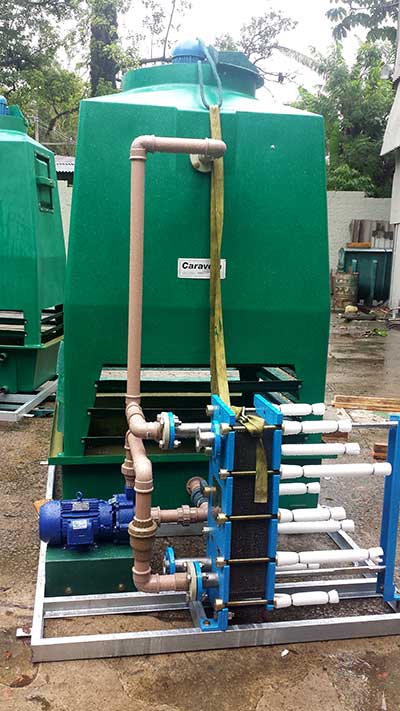

This type of device has one deadly disadvantage. During its operation, the tubes placed inside the tower clog from the outside, making it almost impossible to remove the encrusted salt, with the natural loss of capacity. Given the need for a closed-circuit tower, without the above-mentioned operation problems, we developed the SF cooling tower system. The system consists of a stainless steel plate heat exchanger, 1 cooling tower connected by pumps and belongings. The heat exchanger allows for easy operation and maintenance.
The evaporative cooling system applied is counter-current. Atmospheric air is drawn in through suitable windows, installed at the base of the cooling tower, and forced against the current, the water to be cooled, which has been injected, hot, at the top of the cooling tower. After this process, the water is collected in the pool and pumped back to the equipment to be cooled, closing the circuit.
SF cooling towers are the smartest way to cool your process. For capacity from 35m3/h to 525m3/h per cell.

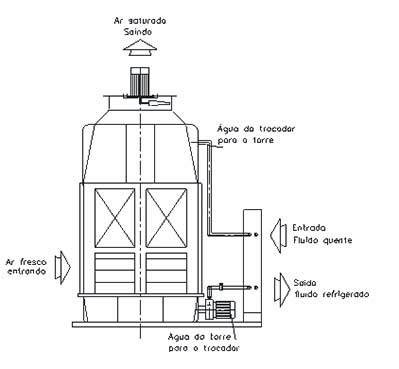

Working principle of the Cooling Tower
Hot fluid, which cannot be contaminated or lost, returns from the process and is introduced into the plate heat exchanger. In counter-current with the raw water from the cooling tower, it is cooled, returning to the process. The circuit water returns to the cooling tower. In this way, the operation of the system and its maintenance, together with the low acquisition cost, are decisive for your choice.
Application areas of the SF Cooling Tower
Commercial HVAC (Heating Ventilation and Air Conditioning)
Best equipment for your comfort air conditioning installation, with economical solutions and low maintenance cost.

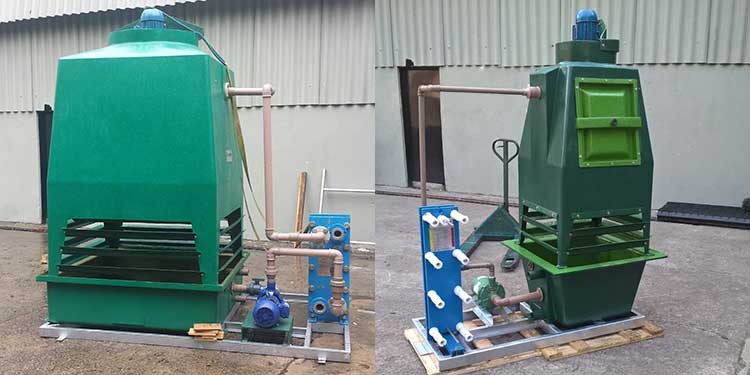

Caravela-Thermotank's technical staff seeks to achieve excellence in the construction and performance of cooling towers. The result, for installations from 35 m3/h to 525 m3/h, is the SF series tower. The solution was to create a cooling tower that was fast to manufacture and of enviable quality. The SF cooling towers are built in juxtaposed panels, self-supporting extremely robust. The unique construction of SF cooling towers allows up to 60% shorter lead times due to prefabricated components and field installation up to 80% faster than similar equipment from other manufactures. The set, exchanger/pump tower, leaves the factory ready, avoiding assembly costs.
Applications in air conditioning processes
Compared to other cooling towers, the SF series offers unparalleled advantages.
Ideal for chemical, mechanical, and any industrial process where heat needs to be eliminated;
Greater thermal capacity than towers of another manufacture of the same size;
Less amount of wires and pipes for your installation;
Possibility of self-extinguishing models (fire resistant);
Robust construction, built with materials that meet the rigor of cooling processes;
Modular design, being able to install several towers to meet the desired capacity;
Easy maintenance, incrustations are easily removed;
Standard, silent, or super silent models.
Industrial Refrigeration
Best equipment for your industrial refrigeration installation, with economical solutions and low maintenance costs.
Caravela-Thermotank's technical staff seeks to achieve excellence in the construction and performance of cooling towers. The result, for installations from 35 m3/h to 525 m3/h, is the SF series tower. The solution was to create a cooling tower that was fast to manufacture and of enviable quality. The SF cooling towers are built in juxtaposed panels, self-supporting extremely robust. The unique construction of SF cooling towers allows up to 60% shorter lead times due to prefabricated components and field installation up to 80% faster than similar equipment from other manufacturers. The set, exchanger tower/pump, leaves the factory ready, avoiding assembly costs.
Applications in industrial refrigeration processes
Compared to other cooling towers, the SF series offers unparalleled advantages.
Ideal for chemical, mechanical, and any industrial process where heat needs to be eliminated;
Higher thermal capacity than towers of other manufacturers of the same size;
Less amount of wires and pipes for your installation;
Possibility of self-extinguishing models (fire resistant);
Robust construction, built with materials that meet the rigor of cooling processes;
Modular design, being able to install several towers to meet the desired capacity;
Easy maintenance, incrustations are easily removed;
Standard, silent, or super silent models.
Industrial Process
Best equipment for your industrial process, such as reactors, plastic machines, presses, air compressors, and others.
Caravela-Thermotank's technical staff seeks to achieve excellence in the construction and performance of cooling towers. The result, for installations from 35 m3/h to 525 m3/h, is the SF series tower. The solution was to create a cooling tower that was fast to manufacture and of enviable quality. The SF cooling towers are built in juxtaposed panels, self-supporting extremely robust. The unique construction of SF cooling towers allows up to 60% shorter lead times due to prefabricated components and field installation up to 80% faster than similar equipment from other manufacturers. The set, exchanger tower/pump, leaves the factory ready, avoiding assembly costs.
Applications in industrial processes
Compared to other cooling towers, the SF series offers unparalleled advantages.
Ideal for chemical, mechanical, and any industrial process where heat needs to be eliminated;
Higher thermal capacity than towers of another manufacturer, of the same size;
Less amount of wires and pipes for your installation;
Possibility of self-extinguishing models (fire resistant);
Robust construction, built with materials that meet the rigor of cooling processes;
Modular design, being able to install several towers to meet the capacity;
Easy maintenance, incrustations are easily removed;
Standard, silent, or super silent models.
Power Generation
Best equipment for your generator electricity producer.
Caravela-Thermotank's technical staff seeks to achieve excellence in the construction and performance of cooling towers. The result, for installations from 35 m3/h to 525 m3/h, is the SF series tower. The solution was to create a cooling tower that was fast to manufacture and of enviable quality. The SF cooling towers are built in juxtaposed panels, self-supporting extremely robust. The unique construction of SF cooling towers allows up to 60% shorter lead times due to prefabricated components and field installation up to 80% faster than similar equipment from other manufacturers. The set, exchanger tower/pump, leaves the factory ready, avoiding assembly costs.
Applications in steam condensation processes in energy generation.
Compared to other cooling towers, the SF series offers unparalleled advantages.
Optimal for steam condensation applications in power generating turbines;
Higher thermal capacity than towers of another manufacturer, of the same size;
Less amount of wires and pipes for your installation;
Possibility of self-extinguishing models (fire resistant);
Robust construction, built with materials that meet the rigor of cooling processes;
Modular design, being able to install several towers to meet the capacity;
Easy maintenance, incrustations are easily removed;
Standard, silent, or super silent models.
Constructive Details of the SF Cooling Tower
Cooling tower housing
Made of fiberglass reinforced polyester (fiberglass). Self-supporting, juxtaposed panels;
Corrosion proof, not degrading, in most normal and or acidic environments;
Easy maintenance;
It has an inspection door, facilitating access to the interior of the cooling tower;
Possibility of self-extinguishing - fire-resistant construction;
316 stainless steel plate heat exchanger. It comes with a pump for the open circuit, valves, pressure gauge and bracket for the set in hot-dip galvanized steel.
Widely used in the cooling of noble fluids, demineralized water, refrigerant gases, etc.
fan
Propellers with adjustable blades, when stopped, high performance "airfoil" profile;
Built-in 3 basic systems, based on the noise level allowed at the installation site Standard - noise level of 85 dB(A) at 2m distance, Silent - noise level of 78 dB(A) at 2m, and Super Silent - noise level of 72 dB(A) at 2m distance from the noise source;
Premium high-performance electric motor drive, type W22, IR 3., TFVE, class F;
The drive of the system is carried out by a self-efficiency motor plus, W22, TFVE. Power transmission to the propeller is through a robust system of pulleys and belts, with a service factor of 3. Optionally, the system can be built with a speed reducer.
Drift eliminator
Model Chevron 160. Built-in juxtaposed injected polypropylene panels;
Retains process droplets in up to 0.0001% of circulating water. Normalized value in DIN 1947;
They can be built in self-extinguishing material types V0, V1, V2, according to UL 94.
Water distribution
Tubular, made of PVC. It comes with 1" multiple spray nozzles. It has a low-pressure drop and is self-adjusting. Operating range up to 60°C. Higher temperatures are coated with fiberglass.
Heat exchange fill
The heat exchange fill of a cooling tower is the main part of the equipment. The choice of the best type to be installed depends, basically, on the quality of the water and its operating temperatures;
GT fill. Constructed with injected polypropylene grids. It has a wavy profile with an inclination of 30°. They are mounted crosswise, in such a way that one "tube" of water crosses the other, causing swirling intent, with an excellent thermal exchange. Excellent mechanical stability, with resistance up to 60°C of hot water. For industrial water up to 300 ppm they are unbeatable;
Film type fill, model A. Constructed in juxtaposed PVC sheets, with crossed canes, similar to the GT. They are by nature self-extinguishing and have good performance in thermal exchange. But they are more fragile. Its application requires that the water be clean;
Triangular bar type fill. Model 18 fl. Built-in a triangular profile in PP or PVC, the bars are supported by a fiberglass profile. This type of fill can be used in extremely polluted water with a temperature of up to 60°C. Its thermal efficiency is lower than the other fillers presented here.
Hardware
The usual hardware is made of SAE 1020 carbon steel, hot-dip galvanized after fabrication;
Screws, nuts, and washers in cadmium steel or 316 stainless steel.
Accessories To provide long life and ease of operation and installation:
Water treatment. We offer the devices for water treatment, as well as its operation;
Sailor ladder, with guardrail and platform;
Winch installed on the tower, to remove the ventilation set;
Electric control panel for pumps and fans, standard NBR 12;
Key for vibration control;
Hydraulic system, composed of pumps, valves, pressure gauges, and belongings.
